Description: F-HRRB -Thread ø-Sheet Thickness - Finish e.g. F-HRRB-M4-16-Z
Round Rivet Bushes provide strong reusable threads into sheet metals. They can be installed into panels from 0.4mm to 6mm, and provide excellent torque resistance. Ideally installed by press with a suitable punch, but they can be installed using a hammer and hand punch.

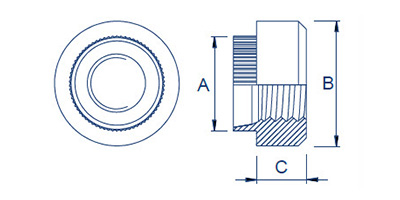

| Thread Size | Sheet Thickness | Hole Size + 0.05 - 0.0 | B ± 0.13 | C ± 0.13 | A + 0.0 - 0.13 |
| M2.5 X 0.45 | 24– 6 Swg | 5.54 | 7.92 | 3.17 | 5.54 |
| M3 X 0.5 | 24– 6 Swg | 5.54 | 7.92 | 3.17 | 5.54 |
| M3.5 X 0.6 | 24– 6 Swg | 6.73 | 9.52 | 3.17 | 6.73 |
| M4 X 0.7 | 24– 6 Swg | 6.73 | 9.52 | 3.17 | 6.73 |
| M5 X 0.8 | 24– 6 Swg | 7.92 | 11.1 | 3.81 | 7.92 |
| M6 X 1.0 | 24– 6 Swg | 9.52 | 12.7 | 5.08 | 9.52 |
| M8 X 1.25 | 24 - 6 Swg | 12.7 | 15.87 | 6.35 | 12.7 |
| M10 X 1.5 | 24 - 6 Swg | 15.87 | 19.05 | 7.62 | 15.87 |
| M12 X 1.75 | 24 - 6 Swg | 19.05 | 25.4 | 10.16 | 19.05 |
| Materials | Finishes | Part Numbers |
|
Steel (X) 303 Series Stainless Steeel |
Bright Zinz (Z) Other Finishes Available to Order |
Type|Thread|Panel Thickness|Finish i.e. F-HRRB-M3-16-Z (Hexagon Rivet Bush - M3 - 16swg panel - Steel Bright Zinc Plated) i.e. : F-HRRB-M4-20-S/S (Hexagon Rivet Bush - M4 - 20swg panel - Stainless Steel) |
